Description

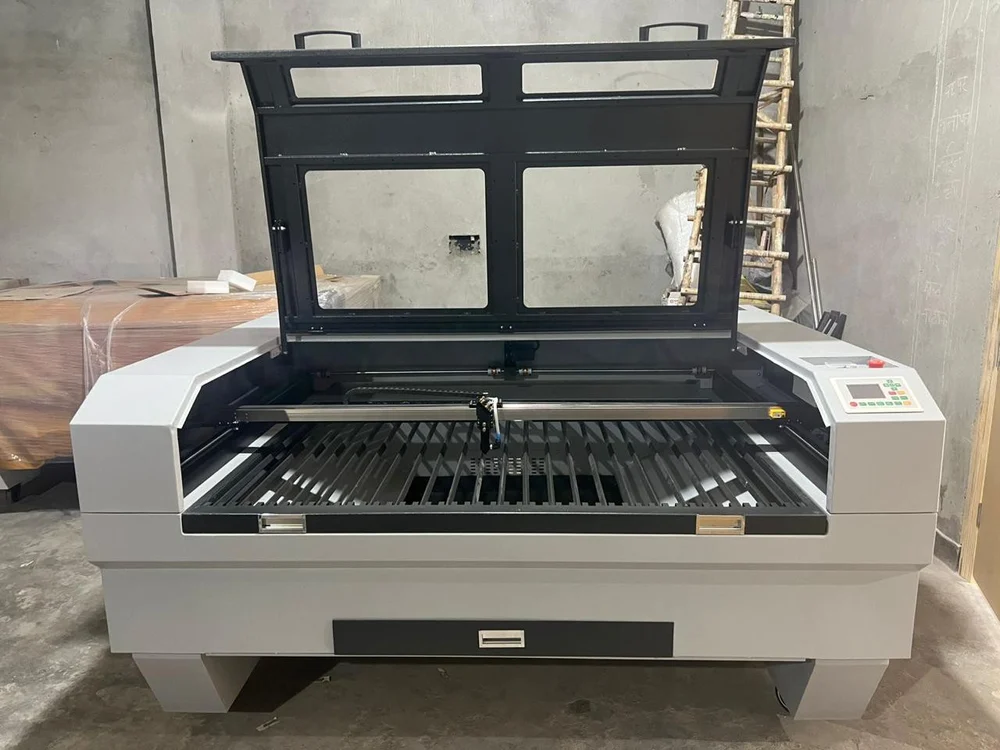

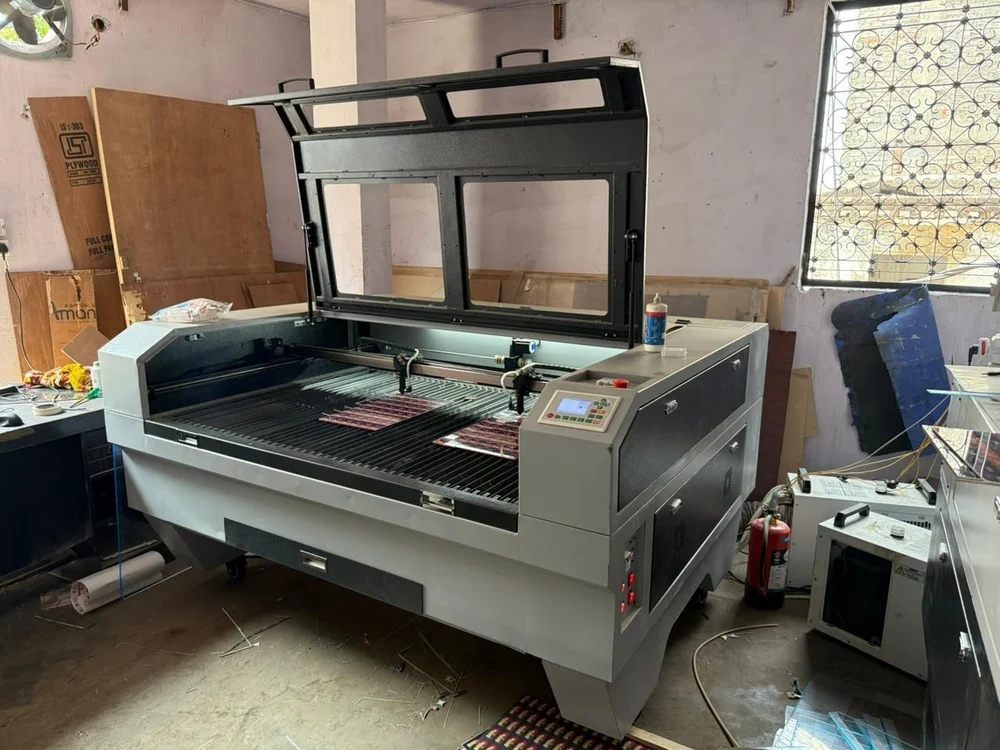

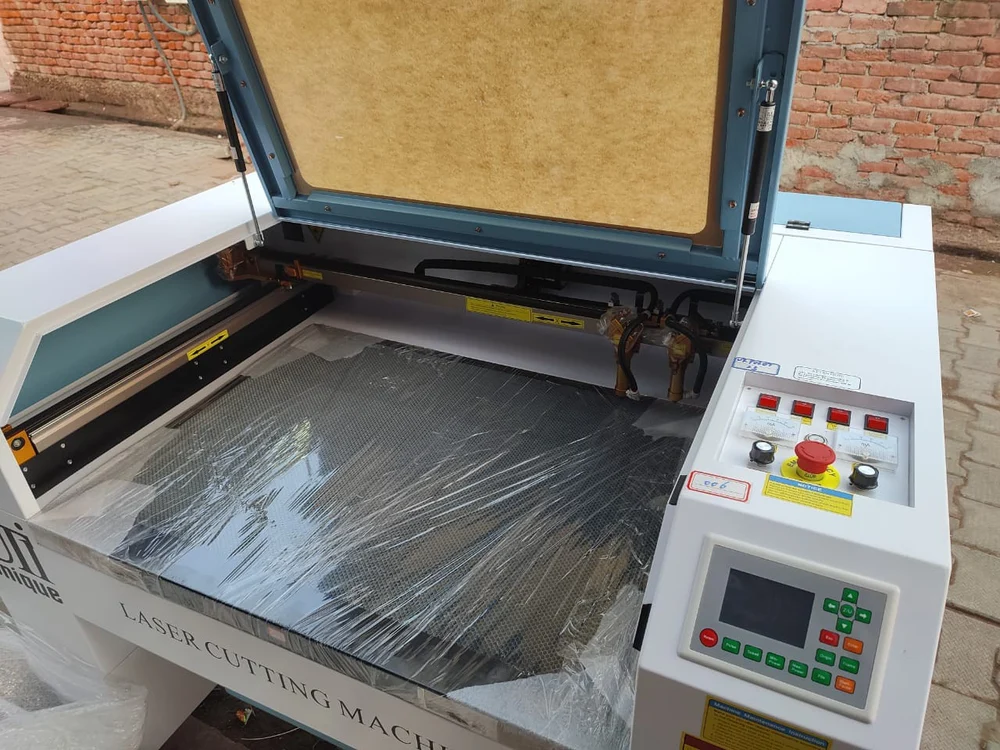

MDF Laser Cutting Machine 1610
The MDF Laser Cutting Machine 1610 is designed for precise cutting and engraving of MDF (medium-density fiberboard), plywood, wood, acrylic, leather, and other non-metallic materials. Ideal for woodworking shops, signage, crafts, and model making, it features a robust frame, a reliable CO₂ laser tube, and advanced control system for detailed and smooth cuts.
Key Features
- Working Area: 1600 × 1000 mm
- Laser Power Options: 60W, 80W, 100W, 130W (CO₂ laser tube)
- Laser Tube Brand: RECI, EFR, Yongli (glass laser tubes)
- Control System: DSP or Ruida controller
- Cutting Speed: Up to 500 mm/s (depends on material and power)
- Engraving Speed: Up to 1000 mm/s
- Positioning Accuracy: ±0.01 mm
- Cooling System: Water-cooled with external chiller recommended
- Input Voltage: 220V/50Hz or 110V/60Hz
- Compatible Software: CorelDRAW, AutoCAD, Adobe Illustrator, RDWorks
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1610 |
| Working Area | 1600 × 1000 mm |
| Laser Power | 60W / 80W / 100W / 130W |
| Laser Tube | CO₂ Glass Tube |
| Control System | DSP / Ruida |
| Positioning Accuracy | ±0.01 mm |
| Max Cutting Speed | 500 mm/s |
| Max Engraving Speed | 1000 mm/s |
| Cooling System | Water Cooling |
| Input Voltage | 220V/50Hz or 110V/60Hz |
| Supported File Formats | AI, DXF, PLT, BMP, JPG, PNG |
Applications
- MDF cutting and engraving
- Woodworking and craft industries
- Signage and advertising
- Model making and prototyping
- Leather and fabric cutting
