Description
Control & Safety Features
- Automatic Protection System: Equipped with intelligent protection against water temperature fluctuations, voltage loss, and overcurrent, ensuring stable and safe machine operation at all times.
- Instant Emergency Stop: Allows immediate shutdown in case of malfunction or safety hazard, providing reliable protection for both the operator and the machine.
- PC Control System: Integrated with a high-performance PC featuring 2.66 GHz CPU, 512 MB RAM, 80 GB hard drive, and a 17-inch display for efficient and smooth operation.
- Professional Control Software: User-friendly English interface that supports multiple file formats from leading design software such as AutoCAD, CorelDRAW, and Photoshop — including PLT and BMP files.
- Seamless Compatibility: Ensures easy import and execution of diverse design files, making it ideal for various engraving, cutting, and creative applications.

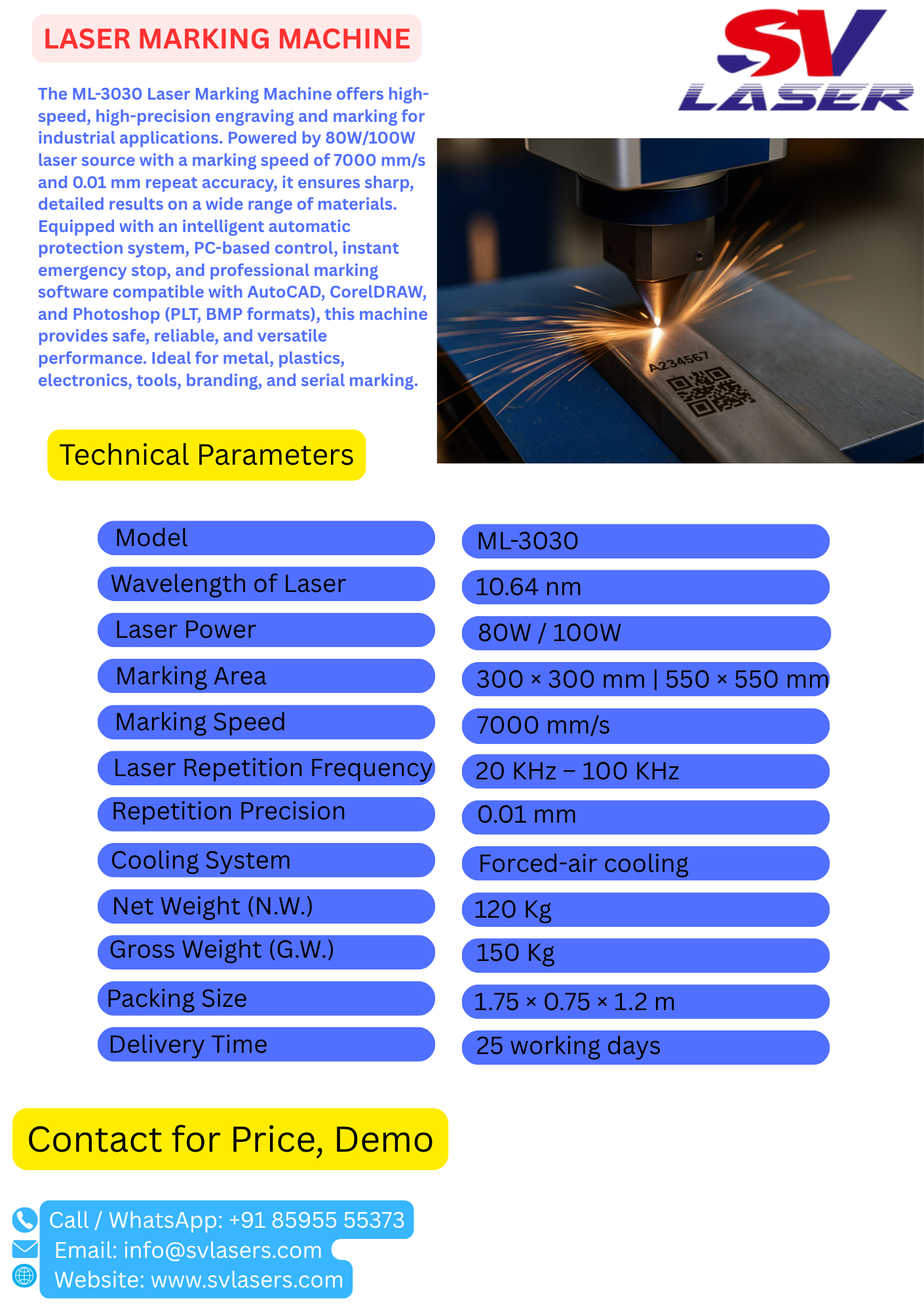

Technical Parameters
| Model | ML-3030 |
|---|---|
| Wavelength of Laser | 10.64 nm |
| Laser Power | 80W / 100W |
| Marking Area | 300 × 300 mm | 550 × 550 mm |
| Marking Speed | 7000 mm/s |
| Laser Repetition Frequency | 20 KHz – 100 KHz |
| Repetition Precision | 0.01 mm |
| Cooling System | Forced-air cooling |
| Net Weight (N.W.) | 120 Kg |
| Gross Weight (G.W.) | 150 Kg |
| Packing Size | 1.75 × 0.75 × 1.2 m |
| Delivery Time | 25 working days |
