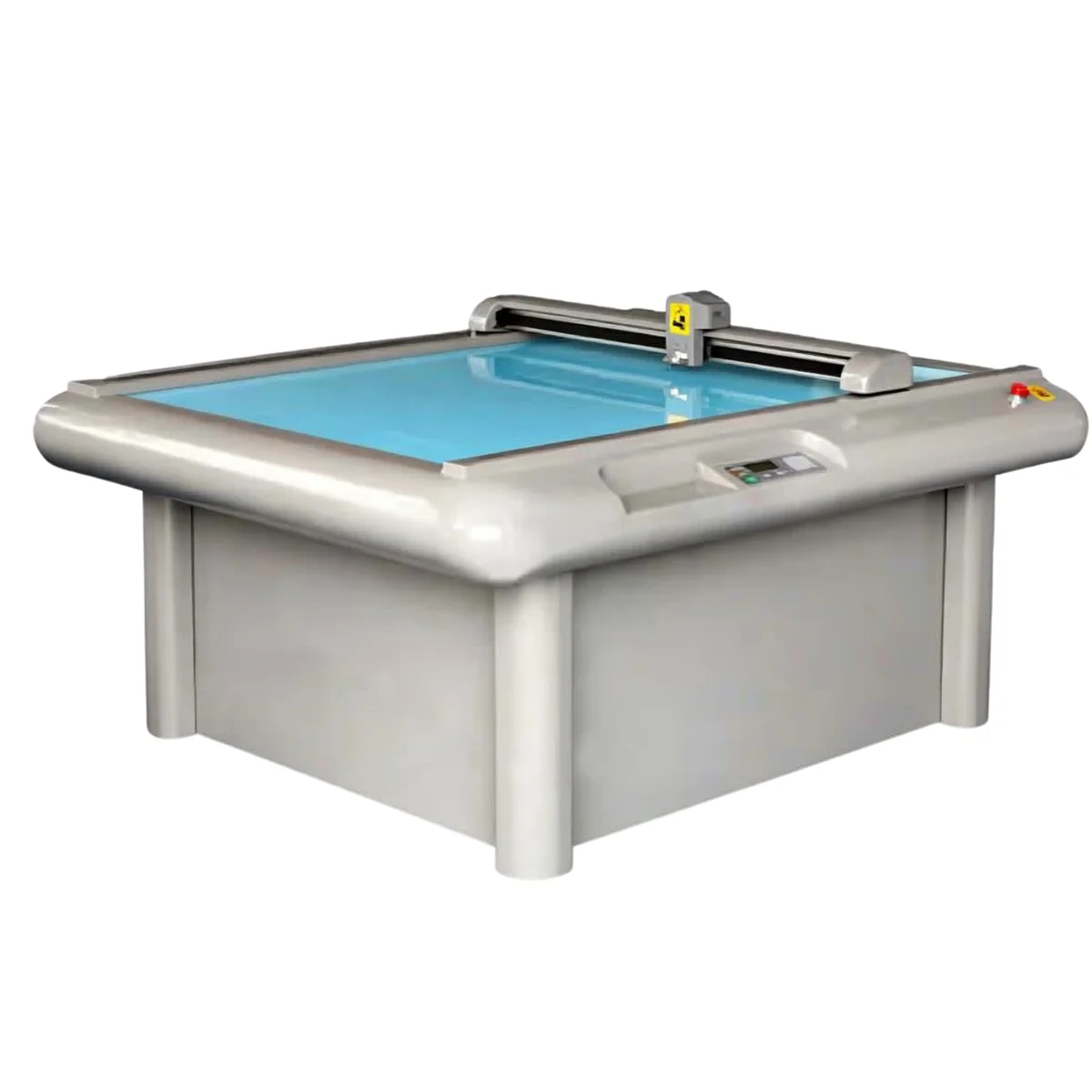

Description
- Digital servo motor driver system enables superior nee
speed and accuracy - Dual tool system, built in flexibility of cutting and
plotting - Designed for diverse materials and industries
- Able to work with any CAD software
- Standard Ethernet/Serial Interfaces with HP-GL
- With top performance but reasonable price, to achieve the best-in-class cost performance, against “Graphtec”, “Mimaki”…

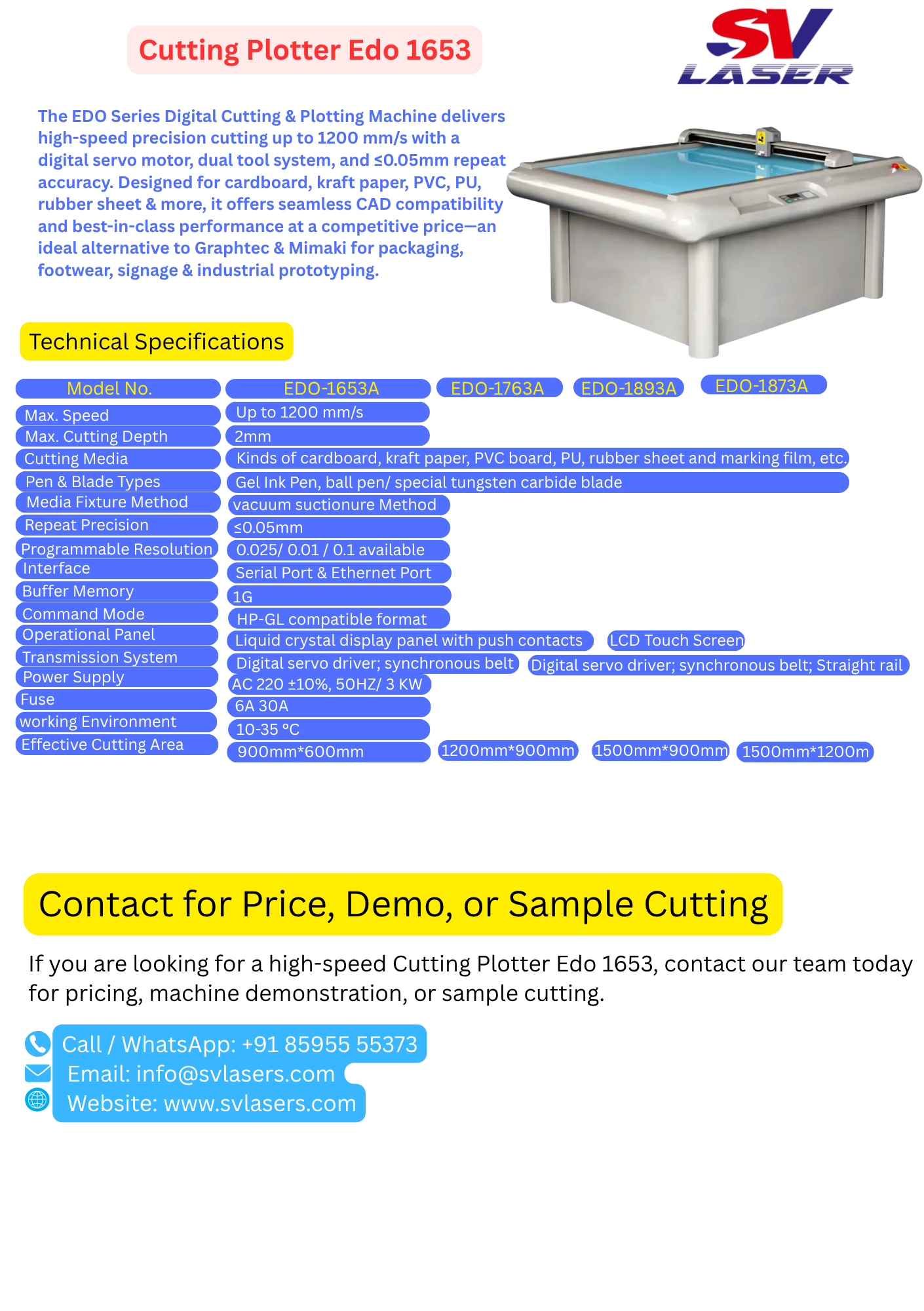

| Model No. | EDO-1653A | EDO-1763A | EDO-1893A | EDO-1873A |
|---|---|---|---|---|
| Max. Speed | Upto 1200 mm/s | |||
| Max. Cutting Depth | 2mm | |||
| Cutting Media | Kinds of cardboard, kraft paper, PVC board, PU, rubber sheet and marking film etc. | |||
| Pen & Blade Types | Gel Ink Pen, ball pen/ special tungsten carbide blade | |||
| Media Fixture Method | vaccum suction | |||
| Repeat Precision | ≤0.05mm | |||
| Programmable Resolution | 0.025/ 0.01 / 0.1 available | |||
| Interface | Serial Port & Ethernet Port | |||
| Buffer Memory | 1G | |||
| Command Mode | HP-GL compatible format | |||
| Operational Panel | Liquid crystal display panel with push contacts | LCD Touch Screen | ||
| Transmission System | Digital servo driver; synchronous belt | Digital servo driver; synchronous belt; Straight rail | ||
| Power Supply | AC 220 ±10%, 50HZ/ 3 KW | |||
| Fuse | 6A 30A | |||
| working Environment | 10-35 deg. C | |||
| Effective Cutting Area | 900mm*600mm | 1200mm*900mm | 1500mm*900mm | 1500mm*1200mm |
