Description

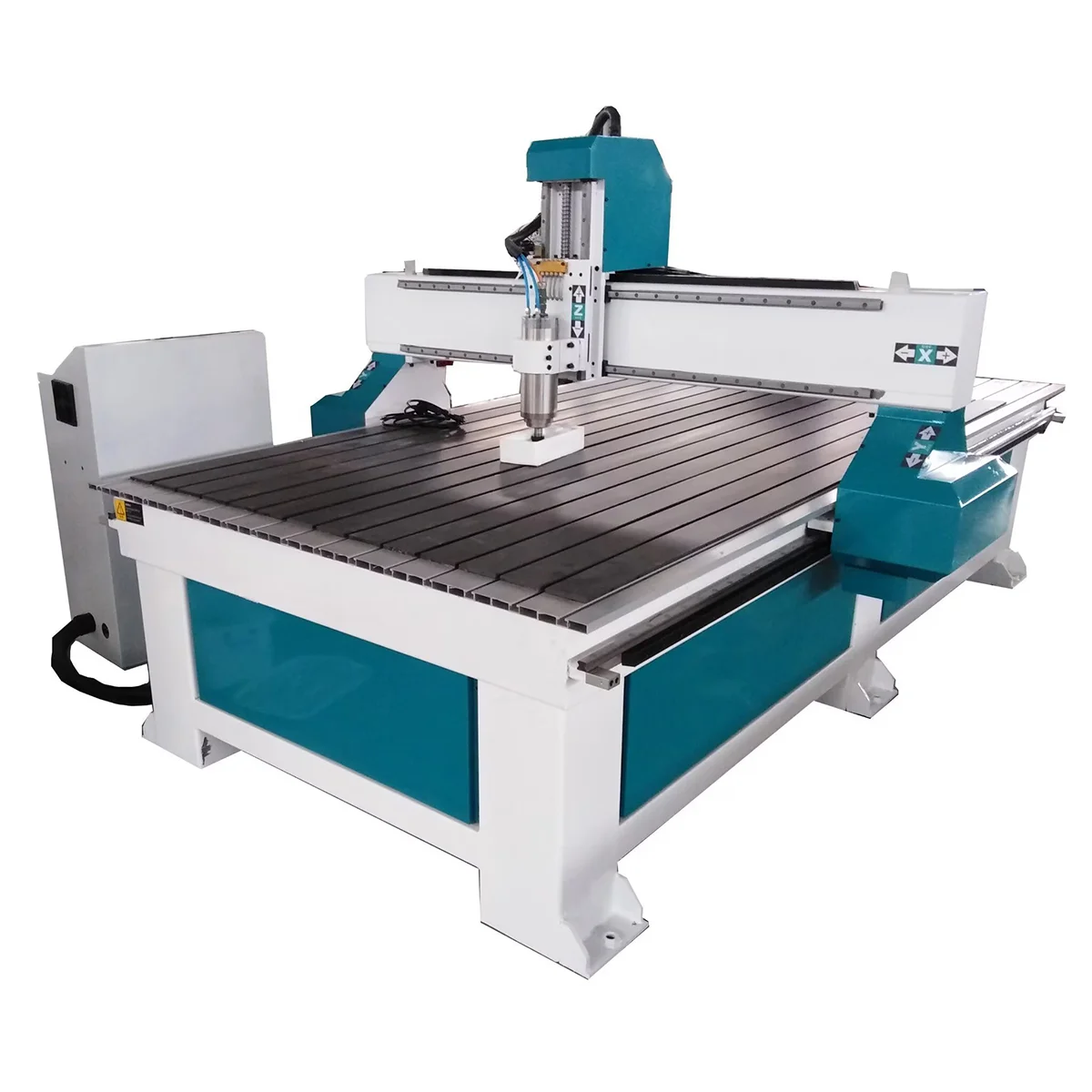

Performance and Features of 1325 CNC Router
- 25 MM Linear guideways for high positional accuracy and long life with high motion accuracy
- 6 KW / 3 KW air-cooled spindle gives you very stable, trouble-free, maintenance-free performance for a long period of time
- Fast speed and high accuracy are ensured by the gear transmission equipped on the CNC Router.
- High accuracy and heavy workload are ensured by the imported square rail
- Manual lubrication maintenance is provided by the lubrication system
- Axis Drive system: X, Y – Rack, Z-Ball Screw
- The working table is covered with a rigid PVC sheet for the long life of the aluminum T-slot table

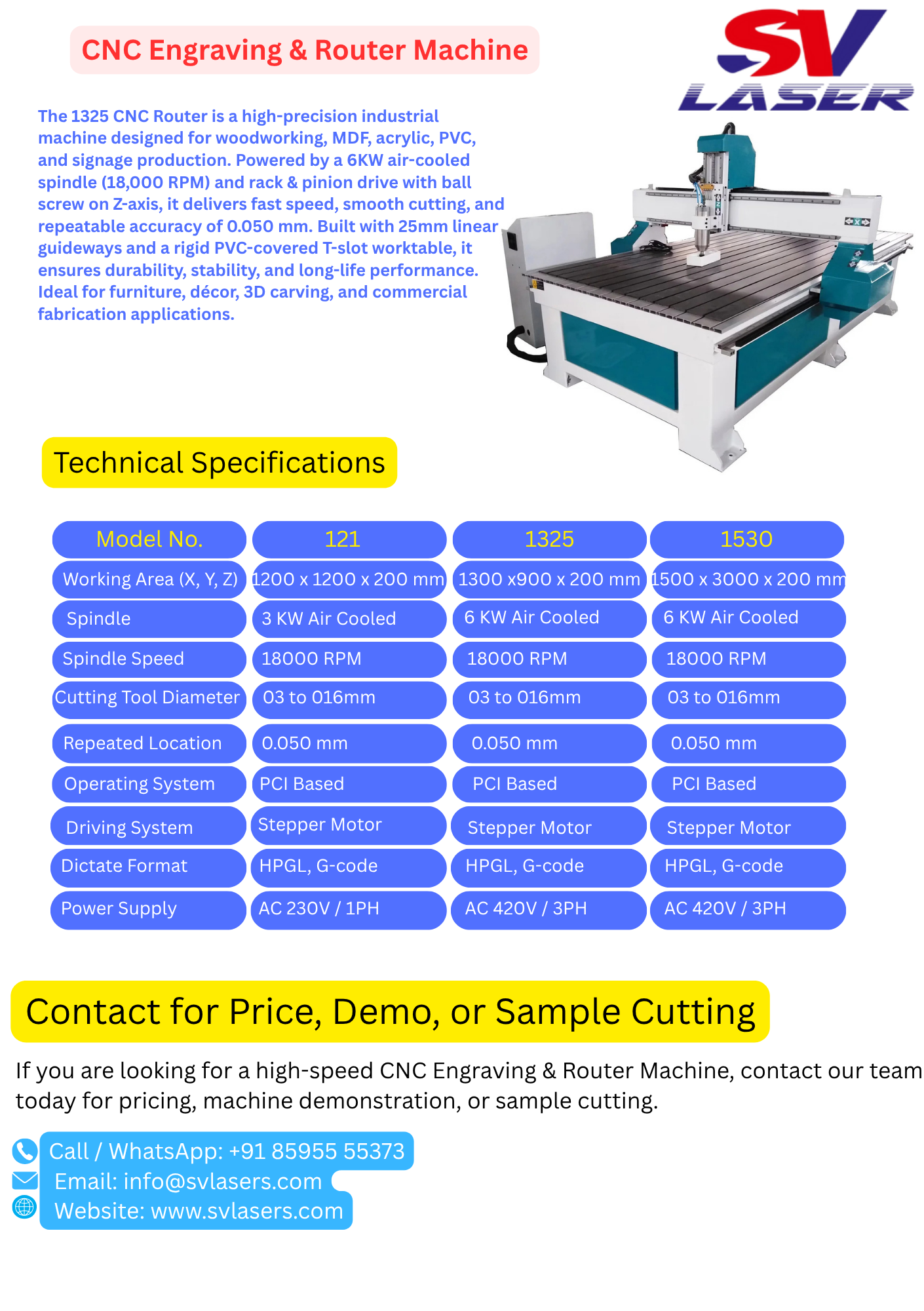

| Model No. | 121 | 1325 | 1530 |
|---|---|---|---|
| Working Area (X, Y, Z) | 1200 x 1200 x 200 mm | 1300 x900 x 200 mm | 1500 x 3000 x 200 mm |
| Spindle | 3 KW Air Cooled | 6 KW Air Cooled | 6 KW Air Cooled |
| Spindle Speed | 18000 RPM | 18000 RPM | 18000 RPM |
| Cutting Tool Diameter | 03 to 016mm | 03 to 016mm | 03 to 016mm |
| Repeated Location | 0.050 mm | 0.050 mm | 0.050 mm |
| Operating System | PCI Based | PCI Based | PCI Based |
| Driving System | Stepper Motor | Stepper Motor | Stepper Motor |
| Dictate Format | HPGL, G-code | HPGL, G-code | HPGL, G-code |
| Power Supply | AC 230V / 1PH | AC 420V / 3PH | AC 420V / 3PH |
